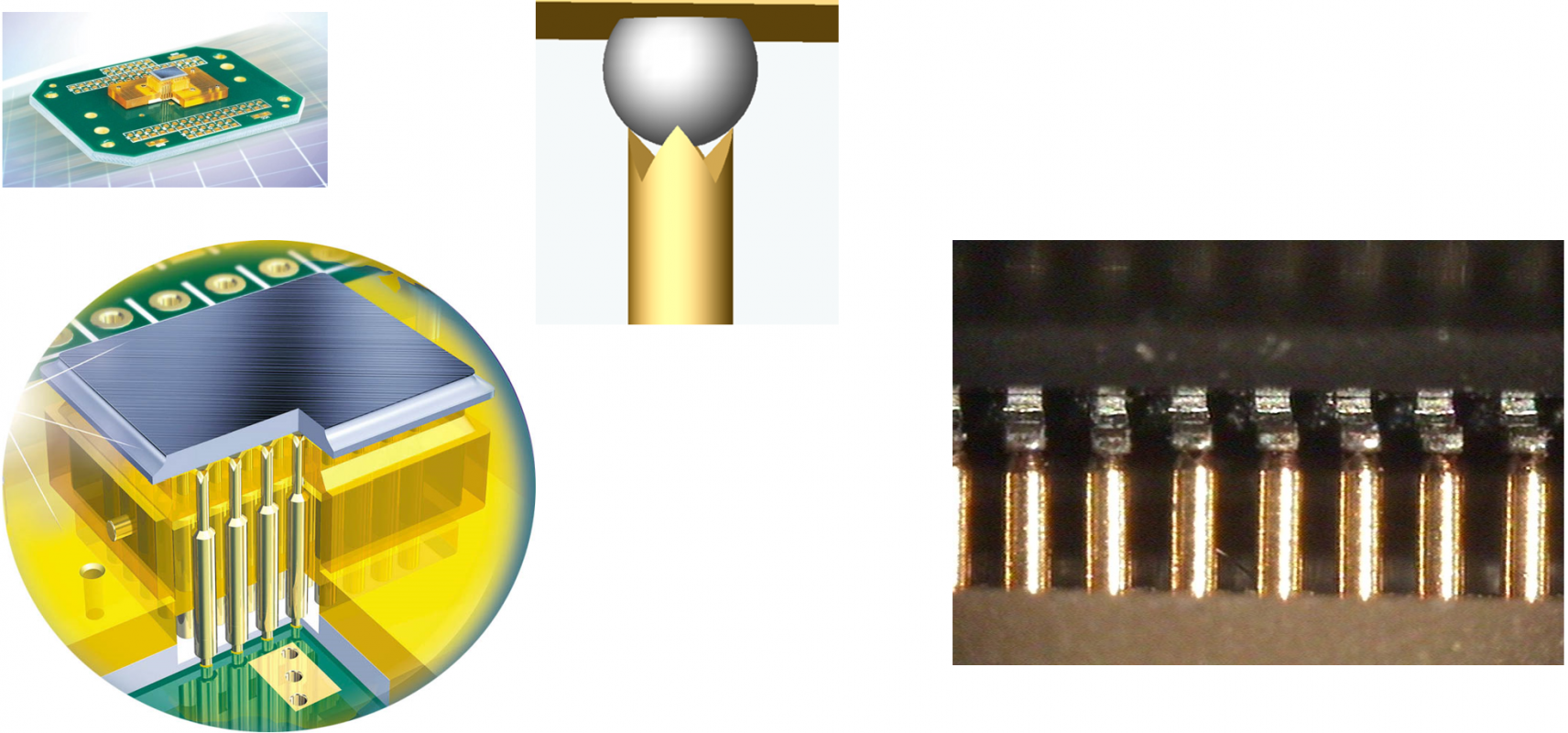

Pogo Pin 정의
Pogo Pin은 반도체 패키지 테스트 공정에서 활용되는 Pogo Socket 으로 제작되어 활용됩니다. Pogo Pin의 Tip은 Ball, Pad 등 테스트 대상의 형태에 따라 다양한 타입으로 제작되며, 당사는 고객사의 니즈에 부합하는 최적의 핀을 공급합니다.

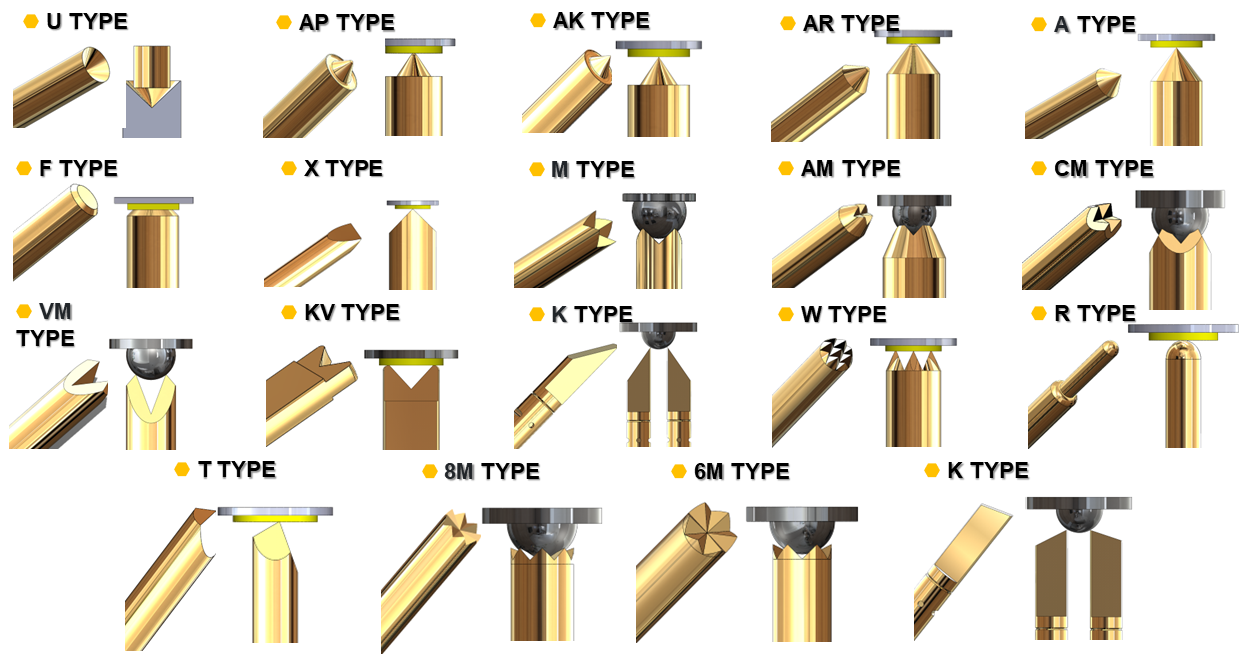

Pogo Pin Tip Shape
kv type : OS03VC-F5.3
|
Spring Force |
Initial Force
Recommended Stroke
Full Stroke
|
2.5gf
0.70mm @ 15.5gf
0.90mm @ 19.0gf
|
|
Material Spec |
Barrel
Top Plunger
Bottom Plunger
Spring
|
PBT / Gold plated
SK4 / Gold plated
Becu / Gold plated
SWP / Gold plated
|
|
Mechanical Spec |
Pointing Accuracy
Operating Temperature
Spring Life Expectancy
|
± 50um
-25°C ~ +125°C
200K <
|
|
Electrical Spec |
DC Resistance (Avg)
Current Rating
Band Width
Self Inductance
Capacitance
|
<80mΩ
2 amps continuous
-1 dB @ 18.11 GHz
0.93nH
0.52pF
|
* 항목이 많으면 좌우 스크롤이 가능합니다.
kv type : OS03VR-F10.1
|
Spring Force |
Initial Force
Recommended Stroke
Full Stroke
|
4.0gf
0.50mm @ 24.0gf
0.65mm @ 30.0gf
|
|
Material Spec |
Barrel
Top Plunger
Bottom Plunger
Spring
|
PBT / Gold plated
SK4 / Gold plated
SK4 / Gold plated
SWP / Gold plated
|
|
Mechanical Spec |
Pointing Accuracy
Operating Temperature
Spring Life Expectancy
|
± 50um
-25°C ~ +125°C
300K <
|
|
Electrical Spec |
DC Resistance (Avg)
Current Rating
Band Width
Self Inductance
Capacitance
|
<100mΩ
1.5 amps continuous
-1 dB @ 10.43 GHz
1.14nH
0.57pF
|
* 항목이 많으면 좌우 스크롤이 가능합니다.
k type : OS03VA-F4.53
|
Spring Force |
Initial Force
Recommended Stroke
Full Stroke
|
2gf
0.30mm @ 10.0gf
0.60mm @ 20.0gf
|
|
Material Spec |
Barrel
Top Plunger
Bottom Plunger
Spring
|
PBT / Gold plated
SK4 / Gold plated
Becu / Gold plated
SWP / Gold plated
|
|
Mechanical Spec |
Pointing Accuracy
Operating Temperature
Spring Life Expectancy
|
± 50um
-25°C ~ +125°C
300K <
|
|
Electrical Spec |
DC Resistance (Avg)
Current Rating
Band Width
Self Inductance
Capacitance
|
<70mΩ
2 amps continuous
-1 dB @ 16.80 GHz
2.27nH
0.83pF
|
* 항목이 많으면 좌우 스크롤이 가능합니다.
k type : OS03VA-F3.4
|
Spring Force |
Initial Force
Recommended Stroke
Full Stroke
|
3gf
0.60mm @ 10.0gf
0.70mm @ 12.5gf
|
|
Material Spec |
Barrel
Top Plunger
Bottom Plunger
Spring
|
PBT / Gold plated
SK4 / Gold plated
Becu / Gold plated
SWP / Gold plated
|
|
Mechanical Spec |
Pointing Accuracy
Operating Temperature
Spring Life Expectancy
|
± 50um
-25°C ~ +125°C
300K <
|
|
Electrical Spec |
DC Resistance (Avg)
Current Rating
Band Width
Self Inductance
Capacitance
|
<60mΩ
2 amps continuous
-1 dB @ 12.47 GHz
1.12nH
0.58pF
|
* 항목이 많으면 좌우 스크롤이 가능합니다.
Barreless type : OD08CR-F4.0
|
Spring Force |
Initial Force
Recommended Stroke
Full Stroke
|
0gf
0.70mm @ 40.0gf
0.80mm @ 43.5gf
|
|
Material Spec |
Barrel
Top Plunger
Bottom Plunger
Spring
|
-
Becu / Gold plated
Becu / Gold plated
SUS / Gold plated
|
|
Mechanical Spec |
Pointing Accuracy
Operating Temperature
Spring Life Expectancy
|
± 50um
-55°C ~ +155°C
300K <
|
|
Electrical Spec |
DC Resistance (Avg)
Current Rating
Band Width
Self Inductance
Capacitance
|
<120mΩ
3 amps continuous
-1 dB @ 20.23 GHz
1.10nH
0.67pF
|
* 항목이 많으면 좌우 스크롤이 가능합니다.
Barreless type : OD03CA-P5.85
|
Spring Force |
Initial Force
Recommended Stroke
Full Stroke
|
0gf
0.65mm @ 23.0gf
0.80mm @ 28.5gf
|
|
Material Spec |
Barrel
Top Plunger
Bottom Plunger
Spring
|
-
SK4 / Gold plated
SK4 / Gold plated
SWP / Gold plated
|
|
Mechanical Spec |
Pointing Accuracy
Operating Temperature
Spring Life Expectancy
|
± 80um
-25°C ~ +125°C
300K <
|
|
Electrical Spec |
DC Resistance (Avg)
Current Rating
Band Width
Self Inductance
Capacitance
|
<120mΩ
1.2 amps continuous
-1 dB @ 8.71 GHz
0.89nH
0.73pF
|
